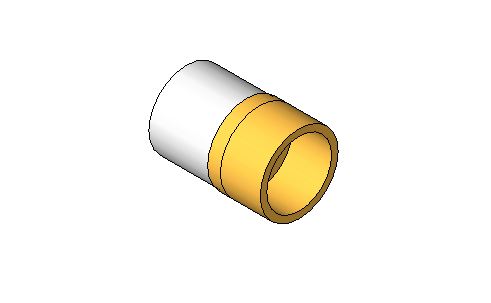

Solid no lead brass (C69300-ecobrass) 1-1/4" PEX insert × 1-1/4" female sweat adapters. SS press sleeves sold separately.

Not intended for use with copper press fittings.
Unit of Measure

Specifications

Size1 N/A 1 1/4" PEX × 1 1/4" F/Sweat

Length

 N/A 2.08 in53 mm

Weight

 N/A 0.094 kg0.207 lb

Carton Qty

 N/A 120

Pkg Qty

 N/A 5

Unit

 N/A ea.

Dimensions

A

 N/A 0.94 in24.0 mm

B

 N/A 1.14 in29.0 mm

C

 N/A 0.97 in24.7 mm

D

 N/A 1.54 in39.0 mm

ID1

 N/A 0.87 in22.1 mm

ID2

 N/A 1.38 in35.0 mm

Technical Data

Material

 N/A No Lead (Eco) Brass - C69300

Operating Temperature [Max]

 N/A 82.2 ºC180 ºF

Operating Pressure [Max]

 N/A 6.9 bar100 psi

Listings

Listings

 N/A cNSFus-pw

Codes

Codes

 N/A IAPMO UPC

Standards

Standards

 N/A ASTM F877
ASTM F1807
CSA B137.5
NSF/ANSI 14
NSF/ANSI 61
NSF/ANSI 372

Installation

Installation

 N/A Installation must follow all of HeatLink's instructions and guidelines.

Related Documents

Related Documents

 N/A
  • HeatLink Limited Plumbing Warranty
    •
    • 1 Note: 1-1/2" and larger fittings may be ordered in less than package quantities; no surcharge.
