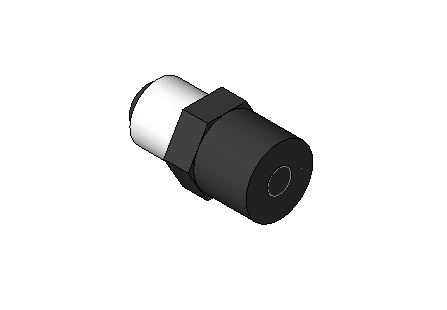

High Performance Polymer PEX insert × MNPT adapters. SS press sleeves sold separately.
Unit of Measure

Specifications

Size

 N/A 1/2" PEX × 1/2" MNPT

Length

 N/A 1.69 in42.7 mm

Weight

 N/A 0.007 kg0.016 lb

Pkg Qty

 N/A 25

Carton Qty

 N/A 500

Unit

 N/A ea.

Dimensions

A

 N/A 0.70 in17.8 mm

B

 N/A 0.35 in8.8 mm

C

 N/A 0.64 in16.1 mm

D

 N/A 0.88 in22.3 mm

E

 N/A 1.01 in25.8 mm

ID1

 N/A 0.32 in8.0 mm

ID2

 N/A 0.50 in12.7 mm

Technical Data

Material

 N/A No Lead (Eco) Brass - C69300

Operating Temperature [Max]

 N/A 82.2 ºC180 ºF

Operating Pressure [Max]

 N/A 6.9 bar100 psi

Listings

Listings

 N/A cNSFus-pw

Codes

Codes

 N/A IAPMO UPC

Standards

Standards

 N/A ASTM F877
ASTM F2159
CSA B137.5
NSF/ANSI 14
NSF/ANSI 61
NSF/ANSI 372

Installation

Installation

 N/A Installation must follow all of HeatLink's instructions and guidelines.

Related Documents

Related Documents

 N/A HeatLink Limited Plumbing Warranty
