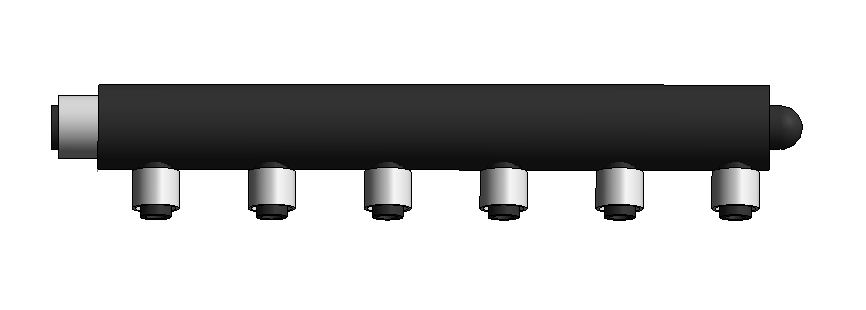

Closed one end and 3/4" or 1" PEX insert on the other end. 1/2" branches in single row or opposing rows. SS press sleeves sold separately.
Unit of Measure

Specifications

Number of Ports

 N/A 6

Inlet

 N/A 3/4"

Outlet

 N/A closed

Length

 N/A 11.46 in291 mm

Height

 N/A 1.38 in35 mm

Weight

 N/A 0.103 kg0.227 lb

Pkg Qty

 N/A 5

Carton Qty

 N/A 150

Unit

 N/A ea.

Dimensions

A

 N/A 10.75 in273 mm

B

 N/A 0.71 in18.0 mm

C

 N/A 0.88 in22.4 mm

D

 N/A 1.77 in45 mm

E

 N/A 1.26 in32 mm

F

 N/A 1.30 in33 mm

G

 N/A 0.65 in16.5 mm

J

 N/A 1.38 in35 mm

J1

 N/A 1.38 in35 mm

Technical Data

Material

 N/A Modified Polyphenylsulfone

Operating Temperature [Max]

 N/A 82.2 ºC180 ºF

Operating Pressure [Max]

 N/A 6.9 bar100 psi

Listings

Listings

 N/A cNSFus-pw-G

Codes

Codes

 N/A IAPMO UPC

Standards

Standards

 N/A ASTM F877
ASTM F2159
CSA B137.5
NSF/ANSI 14
NSF/ANSI 61
NSF/ANSI 372

Installation

Installation

 N/A Installation must follow all of HeatLink's instructions and guidelines.

Related Documents

Related Documents

 N/A
  • Potable Water Systems Installation Guide (L3235)
  • HeatLink Limited Plumbing Warranty
    •
