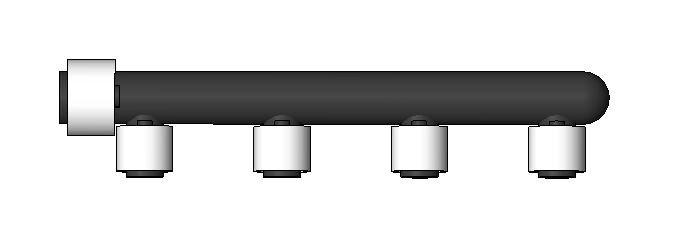

Closed one end and 3/4" PEX insert on the other end. 1/2" branches in single row. SS press sleeves sold separately.
Unit of Measure

Specifications

Number of Ports

 N/A 4

Inlet

 N/A 3/4"

Outlet

 N/A closed

Length

 N/A 7.002 in177.9 mm

Height

 N/A 1.075 in27.3 mm

Weight

 N/A 0.033 kg0.072 lb

Pkg Qty

 N/A 5

Carton Qty

 N/A 60

Unit

 N/A ea.

Dimensions

A

 N/A 7.002 in177.9 mm

B

 N/A 0.704 in17.9 mm

C

 N/A 0.379 in9.6 mm

D

 N/A 1.75 in44.5 mm

E

 N/A 0.925 in23.5 mm

F

 N/A 1.434 in36.4 mm

G

 N/A 0.37 in9.4 mm

J

 N/A 0.705 in17.9 mm

ID1

 N/A 0.464 in11.3 mm

ID2

 N/A 0.32 in8.1 mm

Technical Data

Material

 N/A Modified Polyphenylsulfone

Operating Temperature [Max]

 N/A 82.2 ºC180 ºF

Operating Pressure [Max]

 N/A 6.9 bar100 psi

Listings

Listings

 N/A cNSFus-pw-G

Codes

Codes

 N/A IAPMO UPC

Standards

Standards

 N/A ASTM F877
ASTM F2159
CSA B137.5
NSF/ANSI 14
NSF/ANSI 61
NSF/ANSI 372

Installation

Installation

 N/A Installation must follow all of HeatLink's instructions and guidelines, found in the Potable Water Systems Installation Guide.

Related Documents

Related Documents

 N/A
  • Potable Water Systems Installation Guide (L3235)
  • HeatLink Limited Plumbing Warranty
    •
